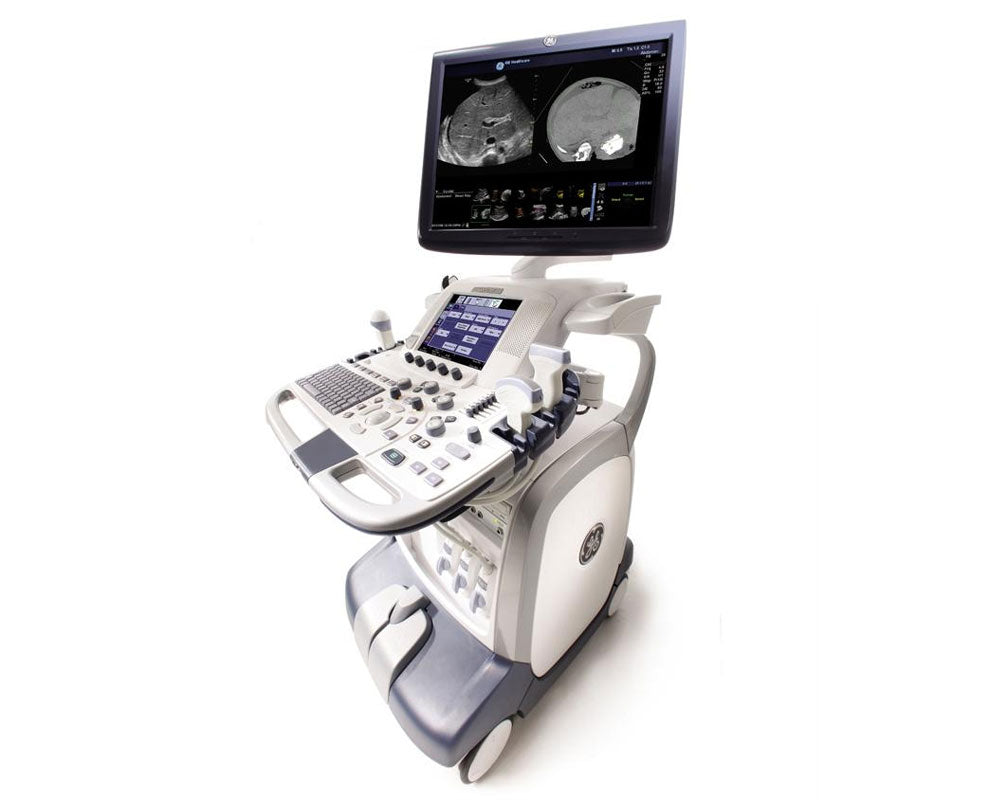

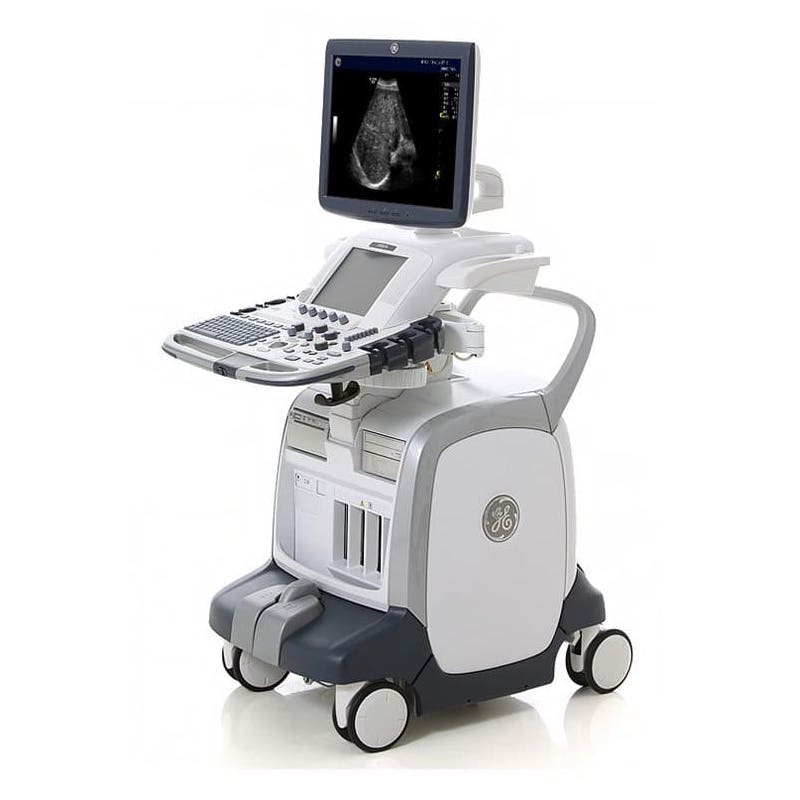

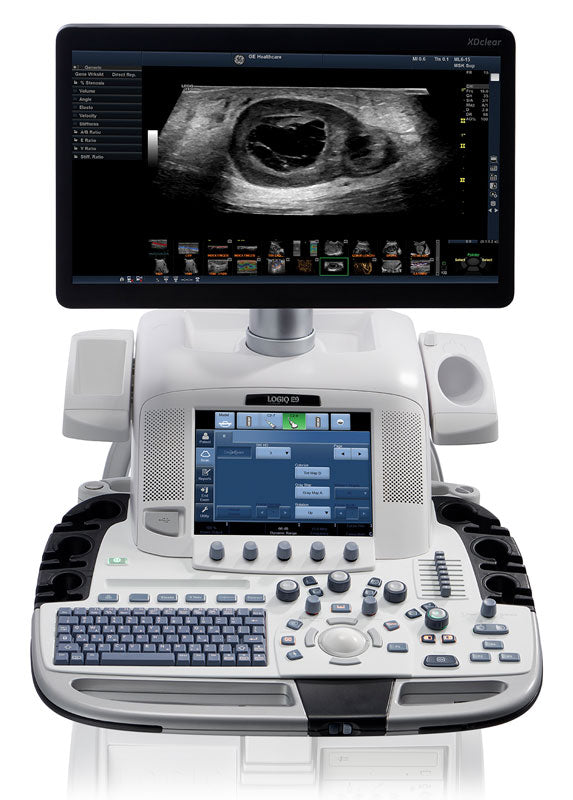

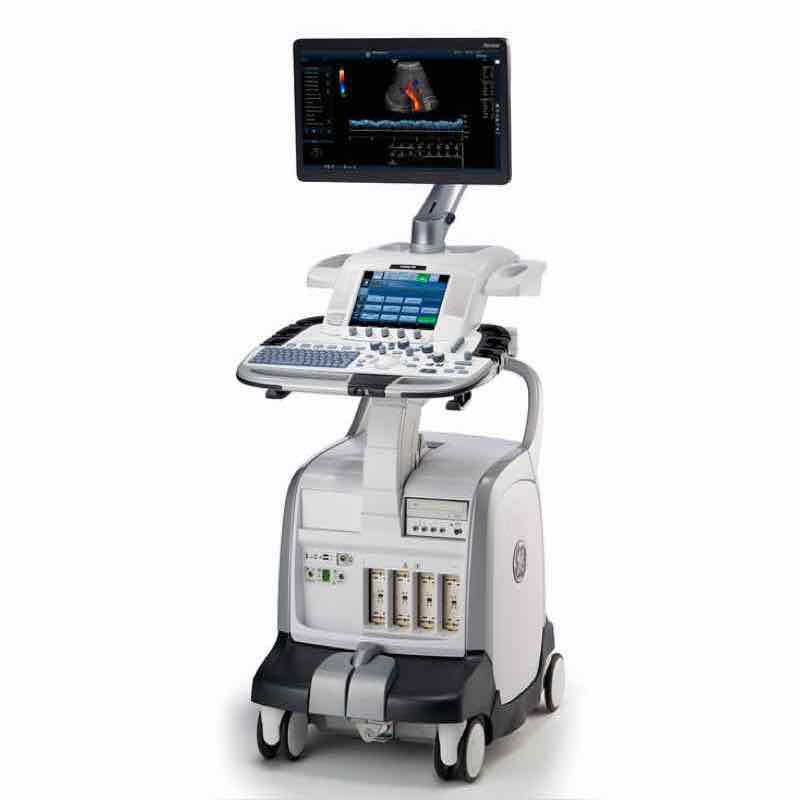

The GE Logiq E9 is a premium shared service ultrasound machine capable of top-of-the-line women’s health and 4D imaging along with clear imaging for radiology, cardiac, and vascular applications. GE’s breakthrough technology with the Logiq E9 is XDclear, an imaging technology that uses advanced transducers with a single crystal, acoustic amplification, and cooling technology to improve image quality, especially at deeper penetration when image quality typically fades. For even higher imaging quality, consider a GE Logiq E9 with XDclear 2.0, which is GE’s full-featured system for general-purpose diagnostic ultrasounds.
PDF Brochure
Transducer Guide
Click here to view transducer guide!
General Specifications
Dimensions
- Height: 1410mm
- Width: 585
- Depth: 830mm
Electrical Power
- Voltage 100-200 VAC or 220-240 Vac
- Frequency: 50/60 HZ
- Power Consumption maximum of 1.2 KVA with peripherals

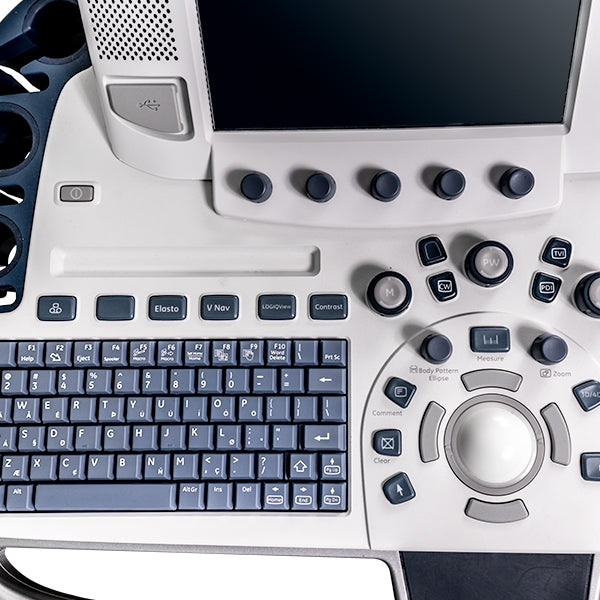

Console Design
- 4 Active Probe Ports
- Integrated HDD (at least 150 GB)
- Integrated Speakers with sub-woofer for premium sound
- Integrated locking mechanism that provides rolling lack and caster swivel lock
- Integrated cable management

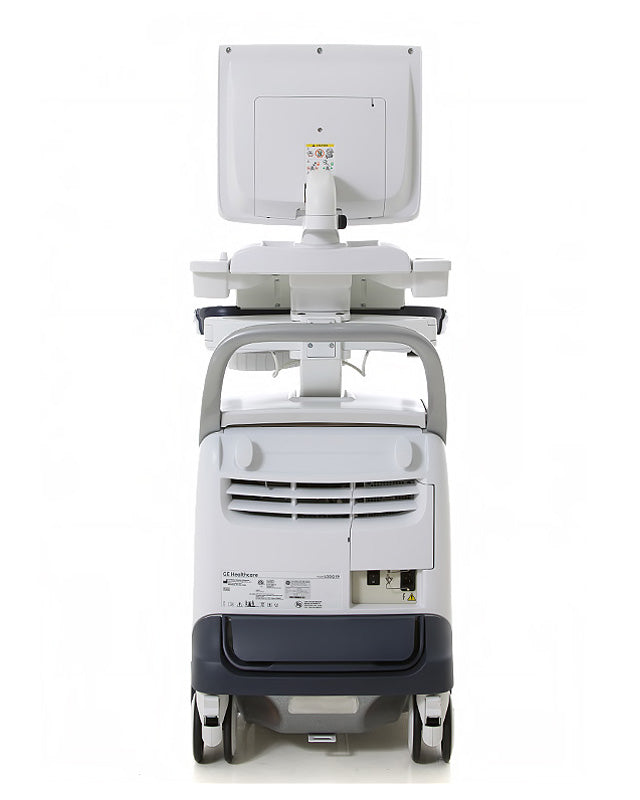

- Front and rear handles
- Easily removable air filters

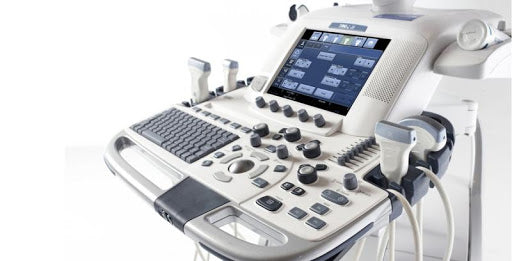

Touch Screen :
- 10.4 High Resolution, color, Touch, LCD screen
- Interactive Dynamic software menu
- Brightness adjustment
- User-configurable layout

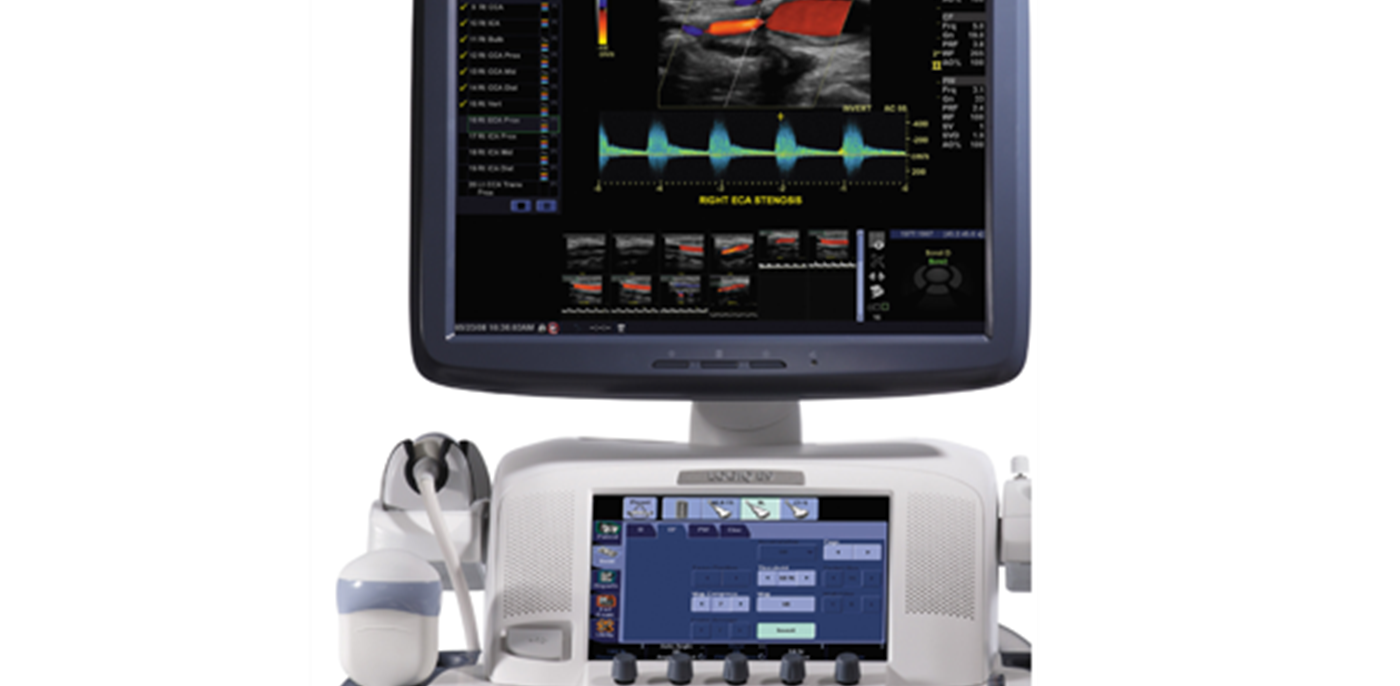

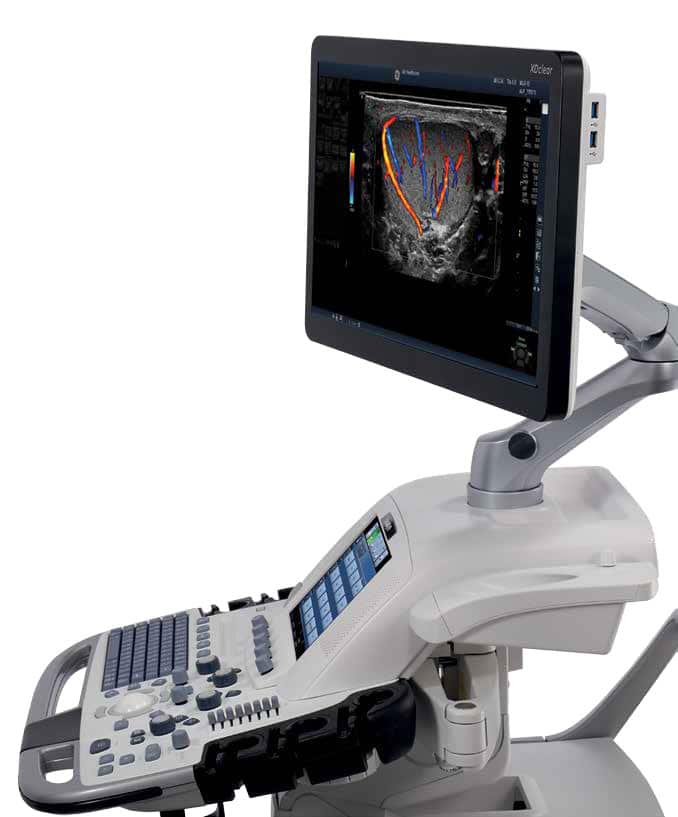

LCD monitor
- 19" High-resolution LCD
- LCD translation
- 350mm horizontal
- 90 degree swivel
- Fold-down and lock mechanism for transportation
- Brightness and contrast adjustment
- Resolution: 1280 X 1024
