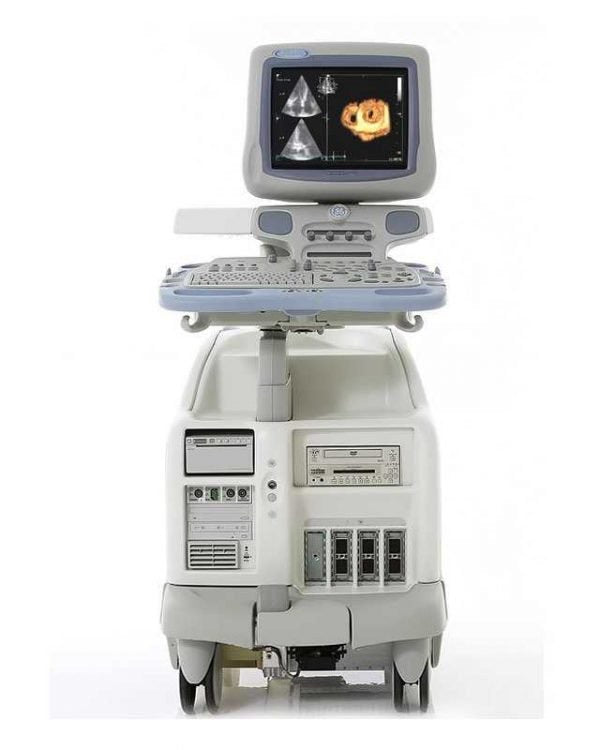

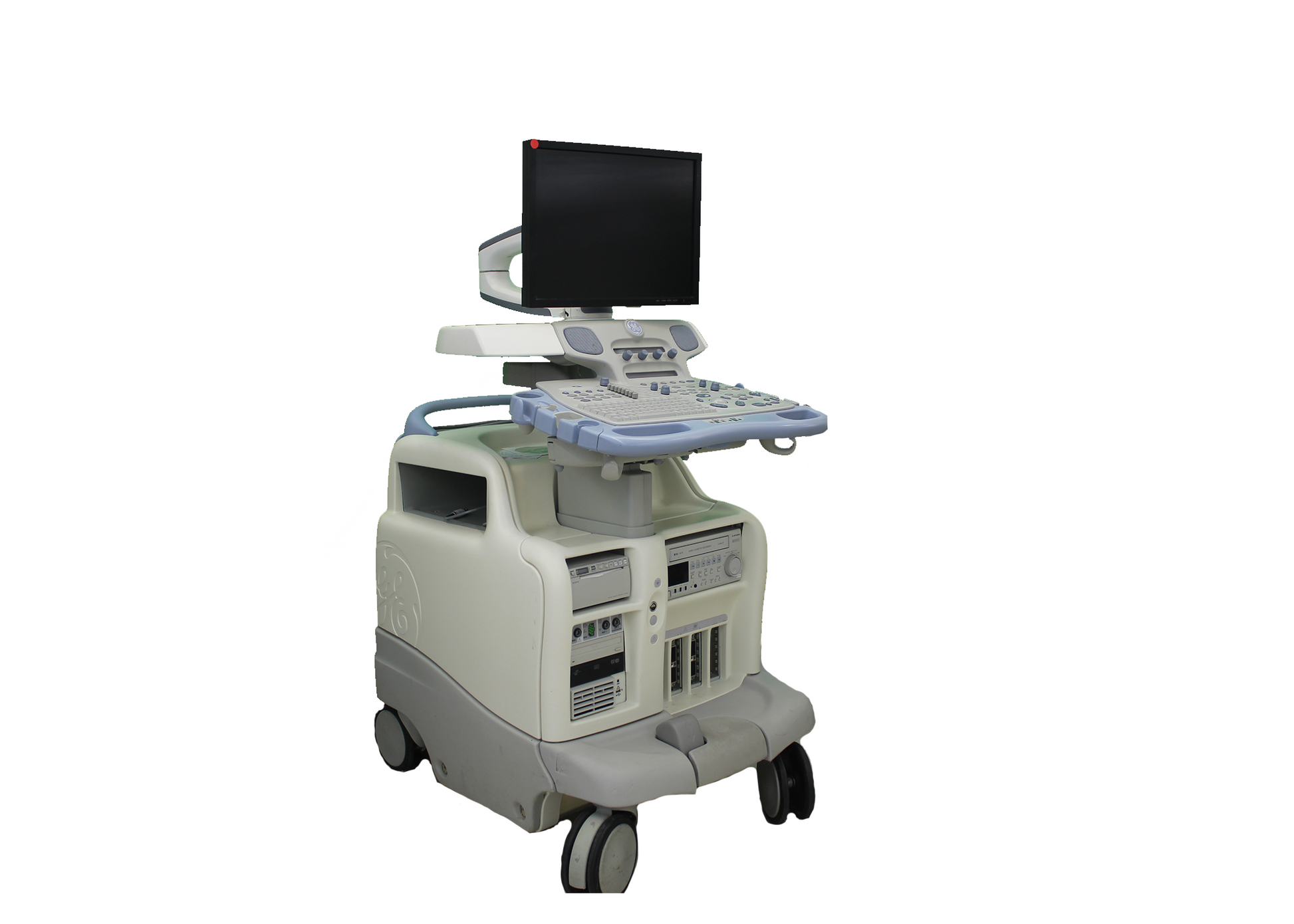

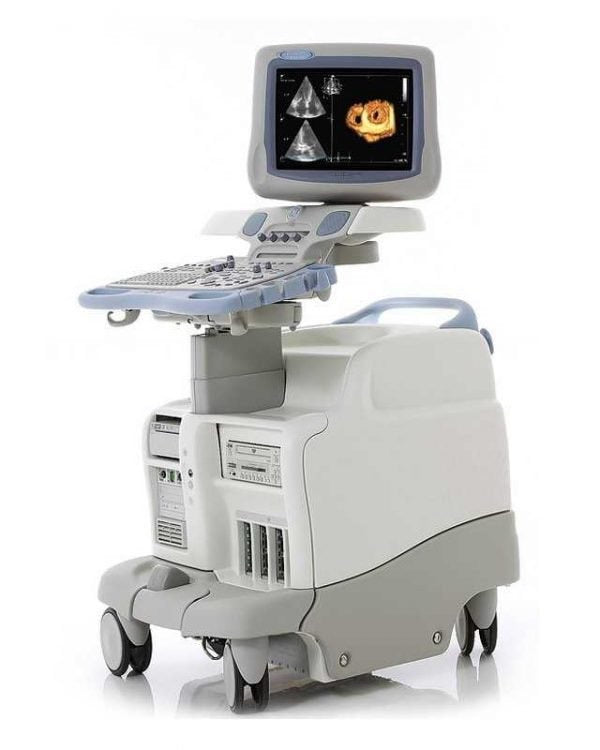

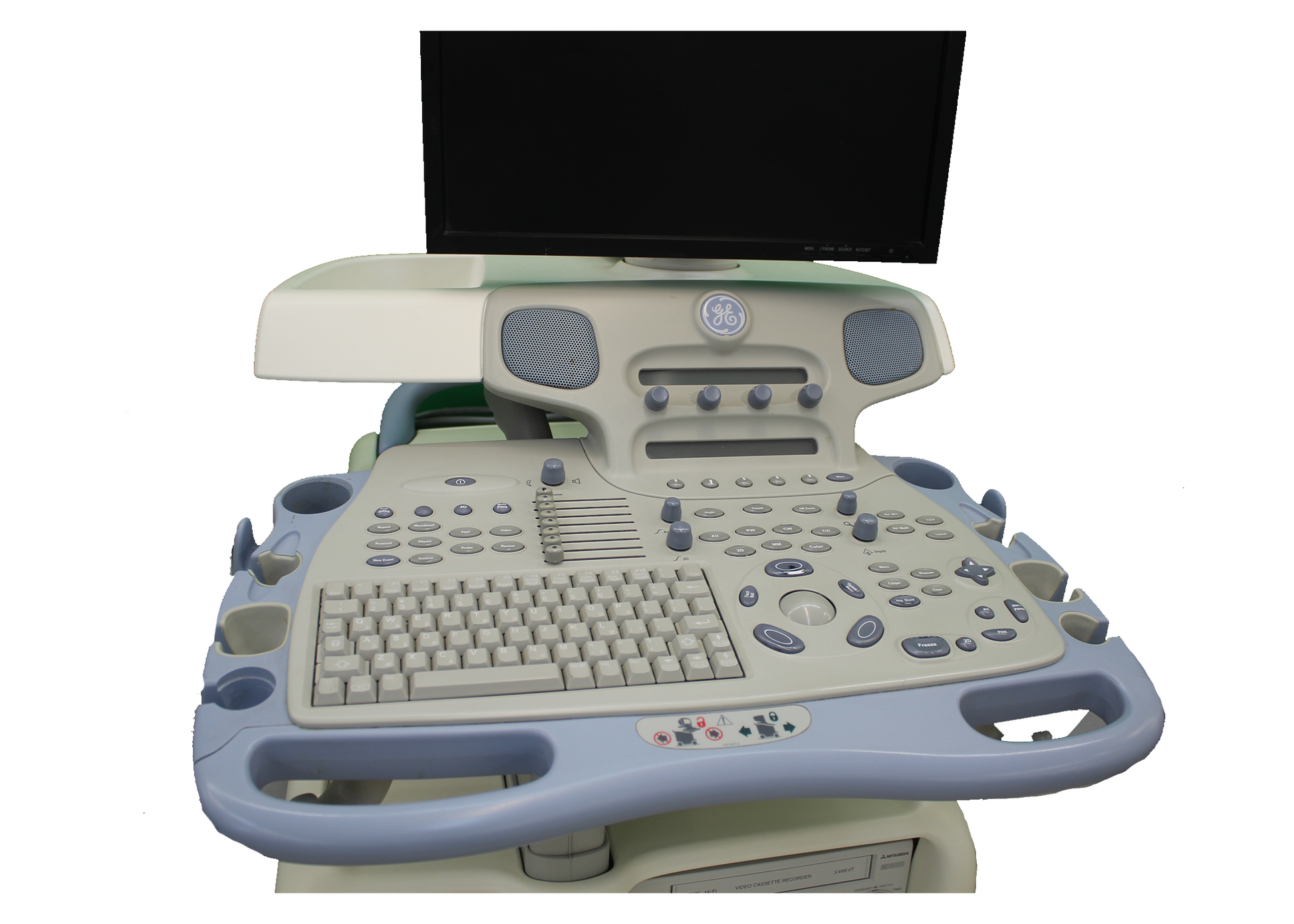

The GE Vivid 7 is best known for it’s premium image quality, image management, and quantitative tool sets. The Vivid 7 ultrasound machine allows physicians to diagnosis with greater confidence using EchoStress, Q analysis, and tissue synchronization imaging. It also features strain imaging, TVI/SRI/SI/TT analysis, ergonomic transducers, and LOGIQView.
PDF Brochure
Features and Specifications
- High-resolution (up to 1600 x 1280 pixels), flicker-free, 21.3-inch computer graphics monitor, tilt and swivel
- 21” LCD Monitor
- 16.7 million simultaneous colors available
- Scanner software supports 800 x 600 display resolution
- DVR-Digital Video Recorder allows + or - R/W format for digital replay, looping, review and M&A capability. DVD playback from any DVD player or PC
- VCR input is played back through digital replay, allowing VCR images to be looped during review and M&A capability
- Instant review screen displays 12 simultaneous loops/images for a quick study review
- Scanplane position indicator and probe temperature are displayed with all multi-plane TEE probes
- Image orientation marker
- Selectable display configuration of duplex and triplex modes: side-by-side or top-bottom, during live, digital replay and clipboard image recall
- Single, dual and quad-screen view
- Split screen view
-
4D Imaging
Compatible Transducers
| Probe Name | Application | Bandwidth | |
|---|---|---|---|
| Cardiology | |||
| M3S | Cardiac, Tran-cranial | 1.5-4.0 MHz | |
| 3S | Cardiac, Tran-cranial | 1.5-3.6 MHz | |
| 5S | Cardiac | 2.2-5.0 MHz | |
| 7S | Pediatric Cardiac | 3.5-8.0 MHz | |
| 10S | Neonatal | 4.4-10.0 MHz | |
| TEE | |||
| 6T | TEE | 2.9-7.0 MHz |
|
| 9T | Multiplane TEE | 4.0-10.0 MHz |
|
| Linear | |||
| M12L | Small Parts | 5.6-14.0 MHz |
|
| 10L | Vascular | 4.8-10.0 MHz |
|
| 7L | Vascular | 3.3-8.0 MHz | |
| 12L | Small Parts | 5.2-13.0 MHz | |
| Intraoperative | |||
| i8L | Cardiac, Vascular | 6.0-10.0 MHz | |
| i13L | Cardiac, Vascular | 10.0-14.0 MHz |
|
| General Imaging | |||
| 3.5C | Abdominal, Vascular | 2.4-4.5 MHz | |
| 8C | Abdominal, Vascular, Neonatal | 5.0-8.0 MHz |
|
| M7C | Abdominal, Vascular | 5.0-7.0 MHz | |
| 5C | Abdominal, Vascular | 4.4-6.7 MHz |
|
| E8C | Endovaginal | 5.0-8.0 MHz |
